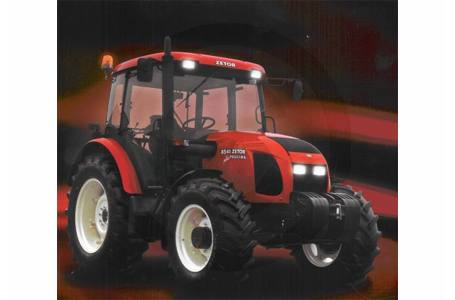

2009 Zetor 9541


Request a Quote Financing Calculator Request a Brochure Financing Form

Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

Print Brochure

The new ProximaPlus series expands the horsepower range of the successful Proxima series up to 107 horsepower by adopting proven components from the bigger Forterra series.

In addition to more powerful engines, ProximaPlus incorporates over 600 new components and brings many new features and upgrades.

Like all Zetors, ProximaPlus carries a three-year manufacturer's warranty.

Since 1946, Zetor tractors have used Zetor's own engines. The ProximaPlus series engines bring more power and 40% torque rise, along with a smooth run and excellent cold weather starting. This family of Zetor engines has become legendary during their 15 years of production for their reliability, extremely long life and easy servicing. They maintain proven all-mechanical controls, so servicing is greatly simplified.

Front End Loaders:

ZETOR system 102SLX and 112 SLX loaders have been designed specifically for ProximaPlus tractors. Therefore, there are no compromises in the ZETOR system loader design. Every ZETOR system loader is a perfect match with ZETOR tractor, providing exceptional strength, high lifting speed, solid performance and long term reliability in a compact format, all that in the traditional very high level of craftsmanship. ZETOR system loaders incorporate many special features not found on any other loader.

Quick mount and unmount - within seconds and with no tools - just release one lever on each side. Loader stands are adjustable in height for easy and safe parking on uneven ground. When the loader is detached, the mounting frame leaves good access for tractor maintenance.

Buckets and other attachments have the proven quick-attach Euro tool carrier. To attach the bucket, there is no need to leave the seat. Massive mounting frames are more than ¾" thick and each side extends as one welded piece over the entire length of the tracto

    Engine
    • Engine: 4-cyl. diesel, water cooled, turbocharged, wet sleeves
    • Engine Capacity: 254 cu. in.
    • Maximum engine horsepower - gross/NET/PTO: 96/90/82
    • Rated engine spee: 2200 rpm
    • Air compressor capacity: 6CFM @ 85 PSI Note: Air compressor is standard in cab tractors and optional in open station tractors.
    • Alternator capacity - cab models: 12 Volt, 95 Amp
    • Alternator capacity - open station models: 12 Volt, 55 Amp
    • Fuel tank capacity: 34 gal.
    Clutch
    • Engine Clutch: dry
    • Clutch diameter: 12 in,, cerametalic lining
    • Clutch control: hydraulic, self-adjusting
    Transmission
    • Transmission: fully synchronized with two-stage power shift
    • Forward/reverse gears: 16/16
    • Synchronized mechanical shuttle: standard
    PTO Shaft
    • PTO Shaft: indepedent, 540/ 1000 rpm
    • PTO clutch controls: wet clutch with electro-hydraulic control
    • Ground speed PTO: standard
    Brakes
    • Barkes: wet disc brake on front and rear axle
    • Service brake control: hydraulic
    • Parking brake control: mechanical
    Steering
    • Hydrostatic
    Hydraulic System
    • Hydraulic System: open center
    • Flow @ pressure at remotes: 14 gpm @ 2900 psi
    • Total hydraulic flow: 20 gpm
    • Three point hitch: Category I - II
    • Function: position, draft, mixed
    • Lifting force at the end of lower links: 6830 lbs. (9100 lbs. optional)
    • Remote outlets - cab models: 3 sets standard, all with float, one with detented spool with automatic pressure release; one port with check value for maximum tightness
    Tires
    • Front: 11.2-24; 12.4-24; 13.6R-24; 12.5/80-18 industrial
    • Rear: 16.9-30; 16.9-34; 18.4R-34; 19.5L-24 industrial
    Dimensions
    • Wheelbase: 92 in.
    • Length: 152 in.
    • Width (for rear wheel track 56 in): 73 in.
    • Height with cab: 102 in. (with rear tires 16.9-30); 104 in. (with rear tires 16.9-34); 105 in. (with rear tires 18.4R-34); 100 in. (with rear tires 19.5L-24)
    • Ground clearance (under front axle): 16 in. (with front tires 11.2-24); 17 in. (with front tires 12.4-24); 18 in. (with front tires 13.6R-24); 14 in. (with front tires 12.5/80-18)
    • Wheel track: 59-71 in. (59-69 in with industrial tires) (FRONT); 56-71 in. (62-71 in. with industrial tires) (REAR)
    • Turning radius w/o brakes: 12 ft.
    • Weight: 8510 lbs.
    Standard Equipment Open Station Models
    • Air compressor and tire inflator
    • Power rear differential lock and front wheel drive engagement
    • Ground speed PTO
    • Telescopic sway bars
    • Telescopic lower links
    • Three sets of remote hydraulic outlets
    • Deluxe seat with ten-way adjustment, swivel motion and arm rests
    • Tinted windows
    • Front and rear wipers
    • Windshield washer
    • Air conditioning
    • Four front and two rear halogen lights
    • Tool box
    • Tilt/telescoping steering wheel
    • Speakers and antenna for radio installation (radio not included)
    • Front brakes integrated in front axle
    Optional Equipment
    • Front and rear weights
    • Block heater
    • Front PTO and front 3point hitch
    • Instructional seat
    Matching Front Loaders
    • Zetor system 102SLX (compact low profile high capacity loader with self-leveling)
    • Zetor system 112 SLX (self-leveling loader with extended reach and lifting height)
    • All Zetor system loaders and their attachments are quick-attach.

    Specifications

    Engine
    Engine Manufacturer Zetor
    Engine Type 4-cyl. diesel, water cooled, turbocharged, 254 cu. in.
    Horsepower Gross: 96, Net: 90
    PTO HP 60 hp
    Rated RPM 2200 rpm
    Specifications
    Wheelbase 92 in.
    Height 100-105 in.
    Width 73 in.
    Weight 8510 lbs.
    Ground Clearance 14-18 in.
    Tire Size Front: 11.2-24; 12.4-24; 13.6R-24; 12.5/80-18 industrial Rear: 16.9-30; 16.9-34; 18.4R-34; 19.5L-24 industrial
    General
    Fuel Capacity 34 gal.
    Transmission Fully synchronized
    Brakes Wet Disc
    Hydraulics Open center, 14 gpm @ 2900 psi
    Drive Type 16 gears forward, 16 gears reverse

    Compare Models

    Print








    Year 2009
    Manufacturer Zetor
    Model 9541
    Engine
    Engine Manufacturer Zetor
    Engine Type 4-cyl. diesel, water cooled, turbocharged, 254 cu. in.
    Horsepower Gross: 96, Net: 90
    PTO HP 60 hp
    Rated RPM 2200 rpm
    Bore and Stroke
    General
    Fuel System
    Fuel Capacity 34 gal.
    Transmission Fully synchronized
    Brakes Wet Disc
    Hydraulics Open center, 14 gpm @ 2900 psi
    Drive Type 16 gears forward, 16 gears reverse
    Specifications
    Wheelbase 92 in.
    Height 100-105 in.
    Width 73 in.
    Weight 8510 lbs.
    Ground Clearance 14-18 in.
    Tire Size Front: 11.2-24; 12.4-24; 13.6R-24; 12.5/80-18 industrial Rear: 16.9-30; 16.9-34; 18.4R-34; 19.5L-24 industrial
