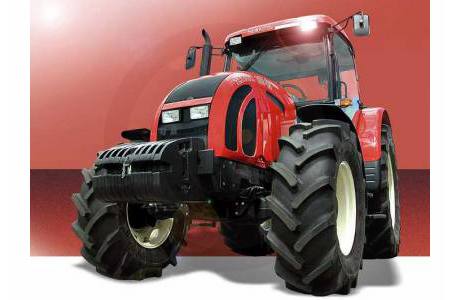

2009 Zetor 9741
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Engine
    • Engine: 4-cyl. diesel, water cooled, turbocharged, wet sleeves
    • Engine Capacity: 254 cu. in.
    • Maximum engine horsepower: Gross: 96, Net: 90
    • Rated engine spee: 2200 rpm
    • PTO horsepower: 81 hp
    • Alternator capacity/Battery capacity: 70 Amp/ 950 CCA
    • Cold weather starting system: Glow plug in each cylinder
    • Standard fuel tank capacity: 48 gal.
    Clutch
    • Engine Clutch: dry
    • Clutch diameter: 13 in., cerametalic lining
    • Clutch control: hydraulic, self-adjusting
    Transmission
    • Transmission: Top shaft synchronized
    • Forward/reverse gears: 24/18
    • Synchronized shuttle: standard
    PTO Shaft
    • PTO Shaft: indepedent, 540/ 1000 rpm
    • Ground speed PTO: standard
    Brakes
    • Barkes: wet disc brake
    • Service brake control: hydraulic
    • Parking brake control: mechanical
    Steering
    • Hydrostatic
    Hydraulic System
    • Hydraulic System: open center; electronic control
    • Flow @ pressure at remotes: 19 gpm @ 2700 psi
    • Total hydraulic flow: 25 gpm
    • Three point hitch: Category I - II
    • Function: position, draft, mixed
    • Lifting force at the end of lower links: 10,800 lbs.
    • Standard remote outlets: 3 sets
    Tires
    • Front: 14.9R-24
    • Rear: 18.4R-38
    Dimensions
    • Length: 170 in.
    • Width (cab foot steps): 87 in.
    • Height to top of cab: 108 in.
    • Ground clearance without hitch: 17 in.
    • Wheel Front: 61.5-80 in.
    • Track Rear: 62-71 in.
    • Turning radius (w/o brakes): 12.3 ft.
    • Weight, w/o weights: 9400 lbs.
    Standard Equipment Open Station Models
    • Power rear differential lock and front wheel drive engagement
    • Limited slip front differential
    • Ground speed PTO
    • Telescopic sway bars with fine adjustment
    • Telescopic lower links
    • Deluxe seat with multiple adjustment, swivel motion and arm rests
    • Tilt and telescoping steering wheel
    • Tinted windows
    • Front and rear wipers
    • Windshield washer
    • Roller sun blind
    • Digital display dashboard
    • Front fenders
    • Three sets of remote outlets (one set with detented pressure positions, built-in check valve and automatic pressure release) Air conditioning
    • Halogen head lights
    • Two front and two rear halogen work lights
    • Speakers and antenna for radio installation (radio not included)
    Optional Equipment
    • Front and rear weights
    • Block heater
    • Front PTO and front 3point hitch
    • Air-ride seat (delayed availability)
    • Instructional seat

    Specifications

    Engine
    Engine Manufacturer Zetor
    Engine Type 4-cyl. diesel, water cooled, turbocharged, 254 cu.in
    Horsepower Gross: 90, Net: 84
    PTO HP 60
    Rated RPM 2200 rpm
    Specifications
    Wheelbase 92 in.
    Height 100-105 in.
    Width 73 in.
    Weight 8490 lbs.
    Ground Clearance 14-18 in.
    Tire Size Front: 11.2-24; 12.4-24; 13.6R-24; 12.5/80-18 industrial Rear: 16.9-30; 16.9-34; 18.4R-34; 19.5L-24 industrial
    General
    Fuel Capacity 34 gal
    Transmission Fully synchronized
    Brakes Wet Disc
    Hydraulics Open center, 14 gpm @ 2900 psi
    Drive Type 16 gears forward, 16 gears reverse

    Compare Models

    		 Print








    Year 2009
    Manufacturer Zetor
    Model 9741
    Style Compact
    Engine
    Engine Manufacturer Zetor
    Engine Type 4-cyl. diesel, water cooled, turbocharged, 254 cu.in
    Horsepower Gross: 90, Net: 84
    PTO HP 60
    Rated RPM 2200 rpm
    Bore and Stroke
    General
    Fuel System
    Fuel Capacity 34 gal
    Transmission Fully synchronized
    Brakes Wet Disc
    Hydraulics Open center, 14 gpm @ 2900 psi
    Drive Type 16 gears forward, 16 gears reverse
    Specifications
    Wheelbase 92 in.
    Height 100-105 in.
    Width 73 in.
    Weight 8490 lbs.
    Ground Clearance 14-18 in.
    Tire Size Front: 11.2-24; 12.4-24; 13.6R-24; 12.5/80-18 industrial Rear: 16.9-30; 16.9-34; 18.4R-34; 19.5L-24 industrial
